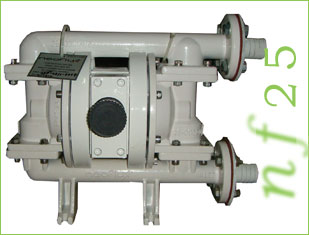

FLOW RATE TO 210 LPM (55 GPM)(12.6 M³ / Hr.)(Pressure Ratio – 1 : 1)
AIR SUPPLY PRESSURE = 2 BAR (29.01 PSIG) to 8.6 BAR (124.7 PSIG)
-
Port Size – ANSI Flange
Liquid Inlet / Suction Side – 1"
-
Liquid Outlet / Discharge Side - 1"
-
Air Inlet – ½" BSP
-
Air Exhaust - ½" Female NPT (Includes Neo-Muff Silencer).
Note:
Pump incorporated with Neo-Tef PTFE
Diaphragms will reduce the Output by 23%
Flow Rate: 161 LPM (42.5 GPM) (9.7 M3/Hr.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EOM
Flammable Product Transfer Safety Manual
BROCHURE
FLYERS
Neo-Flo Competitive Matrix
SPARES LIST
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

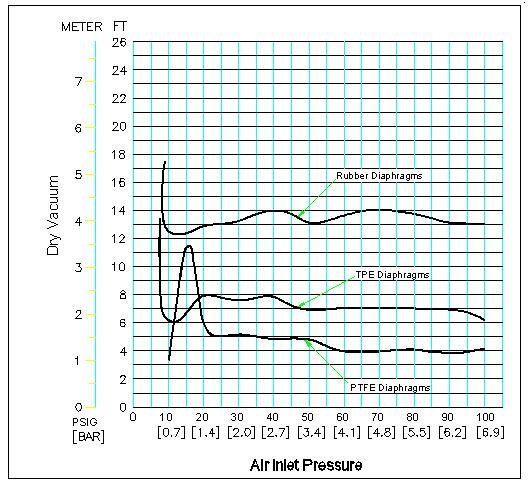

Suction Lift
Rubber Diaphragm PTFE Diaphragm
Dry - 4.6 meter (15.1 ft.) Dry – 4.1 meter (13.4 ft.)Wet – 9.0 meter (29.5 ft.) Wet – 8.8 meter (28.8 ft.)
-
Maximum Particle Size / Maximum Solids Passage – 3/16" (5.1mm)
-
Displacement per Stroke* – 0.30 Liter (0.08 gallon)
-
Typical Noise Level - 70dB (with Neo-Muff Silencer)
-
Ship Weight
-
Aluminum ……………….…… 25 kg. (55 lb.)
-
-
Pump Dimensions – Height 437mm (17.2") X Width 468mm (18.4") X Depth 257mm (10.1")
* Displacement per stroke was calculated at 4.9 bar (71 psig) air inlet pressure against a 2.2 bar (31 psig) head pressure.

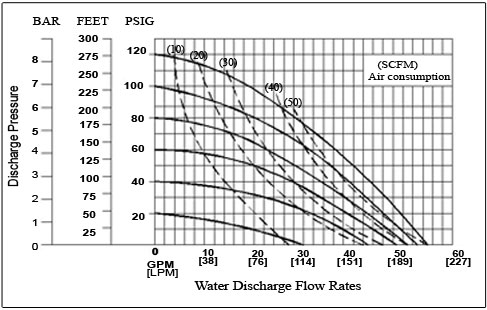

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Performance Chart - - - - - - - - - - - - - - - - - -
Flow indicates in chart are determined by pumping water. Based on Specific Gravity of 1.0
For optimum life and performance, pumps should be specified so that daily operation parameters will fall in the center of the pump performance curve.
